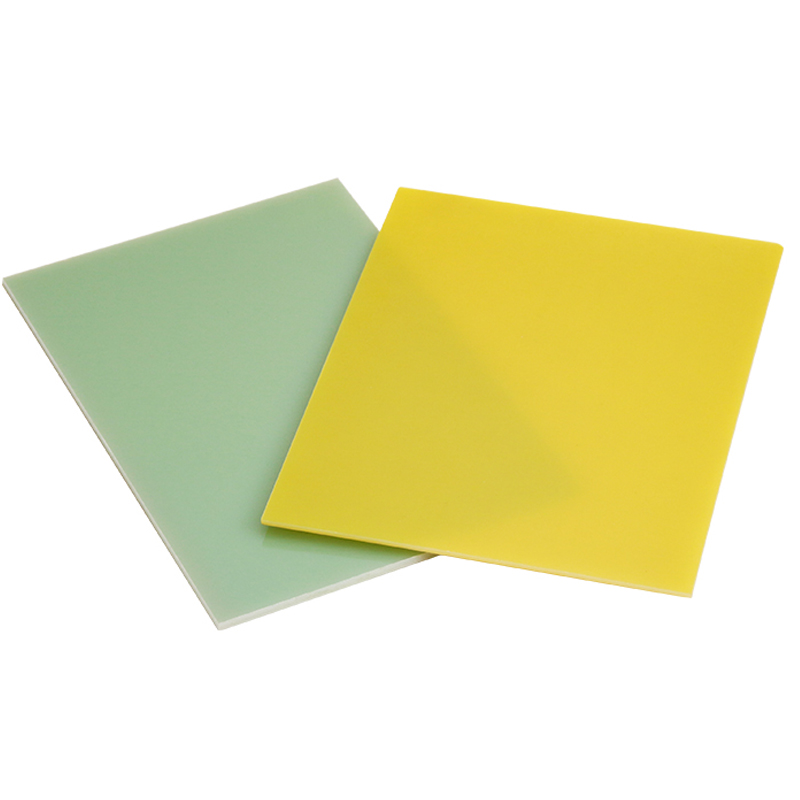

(G10)Epoxy glass fabric laminated sheet is composed of alkali-free E-glass fabric impregnated with epoxy resins binder by processing under heat and pressure. It has high mechanical strength, good electric strength properties and dielectric loss properties under both dry and humid conditions. G10 also has low water absorption rates.
Feature:
Low water Absorption(≤0.2%)
Temperature Resistance(≥155°C)
High Mechanical & Electrical Strength
Excellent Rigidity & Dimensional Stability
Good Dielectric Properties(≥16Kv/mm)
Easy To Machine
Chemical Resistance
Flat And Straight Panel
Thermal Shock Resistance(-273°C to +155°C)
RoHS, Reach
Application:
Application in frame type circuit breaker: safety baffle, safety shield, spacer, interphase spacer, etc..
Applications in molded circuit breakers: interphase baffles, jump plates etc..
In motor motor applications: motor armature parts, movable cover plate, slot wedge, fixed cushion, thin gasket, carbon brush holder, etc..
In the middle and high voltage switchgear applications: the front end, back end, upper end, bottom bulkhead, interphase barrier, switch and transformer structural support, bus bar, plywood and so on.
Application of distribution cabinet: partition board, lining board, wiring board, interphase insulating board, bottom end partition board and contact support component.
Specification:
Item. | Color | Thickness | Density (g/cm³) | Length (mm) | Width (mm) |
G10-W | Green | 0.5mm 1mm 2mm 3mm-50mm 50mm Above | 1.85 | 1220/2440 | 1020/1220 |
G10-Y | Yellow | 0.5mm 1mm 2mm 3mm-50mm 50mm Above | 1.85 | 1220/2440 | 1020/1220 |
*Specific products could be made according to customers’requirements.
Performance:
(G10)Epoxy Glass Fabric Laminated Sheet | |
Properties | Value |
Water Absorption (2mm in thickness) | 8mg |
Flexural Strength perpendicular to laminations | 460Mpa |
Impact Strength parallel to laminations (Charpy) | 53KJ/m2 |
Insulation Resistance after immersion in water(24hours) | 2.1x1015 |
Dissipation Factor(1MHz) | 0.02 |
Permittivity (1MHz) | 4.8 |
Dielectric strength perpendicular to laminations(in 90±2°C transformer oil, 2 mm in thickness) | 17MV/m |
Breakdown voltage parallel to laminations (in 90±2°C transformer oil) | 48KV |
Temperature Class | B |
Storage Period | 18 months(Below 40°C) |
Standard | IEC 60893-3-2 |
