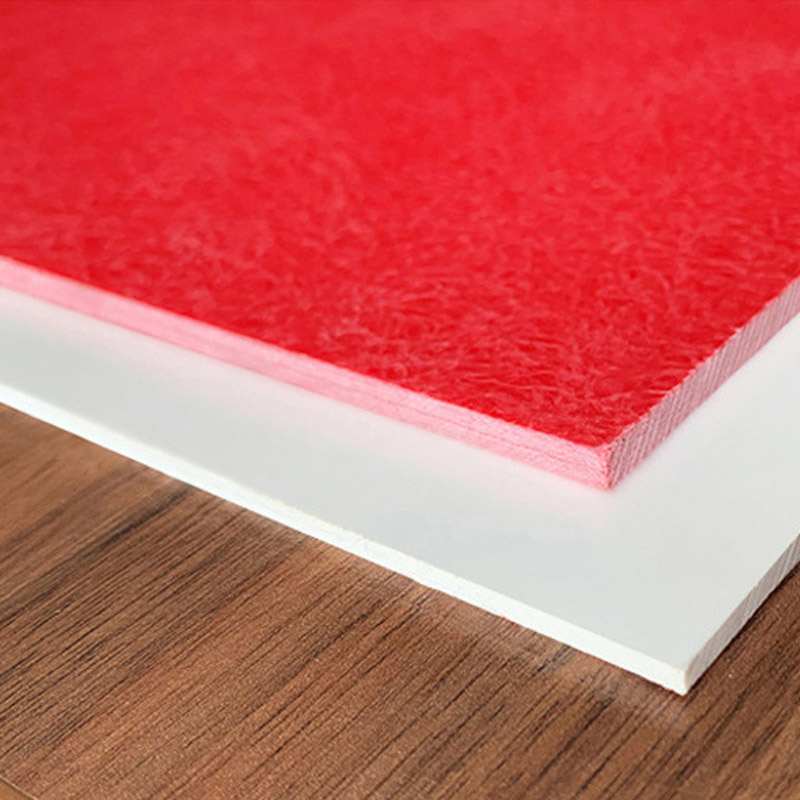

UPGM (Unsaturated Polyester Glass Mat) is rigid insulation material made by alkali-free glass mat impregnated in unsaturated polyester resin and additives, cured by heat and pressure. Materials exhibits excellent electrical and mechanical properties, widely used in railway industry, photovoltaic industry, wind power, power transmission and distribution,metallurgy, mining, petrochemical industry, public transportation, etc.
Feature:
UPGM-201:
Stable electrical performance in high humidity, good mechanical performance at moderate temperatures, for mechanical and electrical applications.
UPGM-202:
Good mechanical and electrical properties, good mechanical performance at moderate temperatures, good flame and fire resistance.
UPGM-203:
Similar to UPGM-202 but with improved arc and tracking resistance, for mechanical and electrical applications, meet UL 94 V-0 and EN45545 standard.
UPGM-204:
Superior to UPGM-203 with higher mechanical strength and heat resistance, designed for operating under harsh conditions.
UPGM-205:
Thermal class H, TI 188°C certificated by CEMT. Well suited for mechanical and electrical applications, excellent mechanical and electrical strength at room temperatures,excellent heat resistance, good performance against arc and tracking, toxic-free,flame resistant, low smoke, meet EN45545 standard
Application:
l Electrical Applications:
They are commonly used in the electrical and electronics industries for making circuit breaker housings, switchgear panels, and other components where electrical insulation is critical.
l Transportation:
In the automotive and rail industries, UPGM sheets are used for components that require both structural integrity and insulation properties, such as under-the-hood components and interior panels.
l Industrial Equipment:
These sheets are used in the manufacturing of parts for machinery and equipment that require high strength, insulation, and resistance to environmental factors.
l Construction:
UPGM sheets find applications in construction for fire-resistant panels and other structural components that benefit from their thermal and chemical resistance.
Specification:
Item | Standard Size | Thickness | Temperature Resistance |
UPGM-201 | 1000×2000mm 1010×2020mm 1250×2500mm | 0.8mm-100mm | ≥130°C |
UPGM-202 | |||
UPGM-203 | |||
UPGM-204 | |||
UPGM-205 |
*Specific products could be made according to customers’requirements.
Performance:
No. | Parameters | Unit | Standard | |||||
UPGM-201 | UPGM-202 | UPGM-203 | UPGM-204 | UPGM-205 | ||||
1 | Flexural strength | Normal condition | MPa | ≥130 | ≥130 | ≥130 | ≥250 | ≥250 |
130°C±2°C | - | ≥65 | ≥65 | - | - | |||
150°C±2°C | - | - | - | ≥125 | ≥125 | |||
2 | Impact strength,Charpy | kJ/m2 | ≥40 | ≥40 | ≥40 | ≥50 | ≥50 | |
3 | IZOD Impact strength， Notched | kJ/m2 | ≥35 | ≥35 | ≥35 | ≥44 | ≥44 | |
4 | Dieletric breakdown Parellel to laminations (in 90°C±2°C oil) | kV | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | |
5 | Resistivity after immersion | MΩ | ≥5.0x102 | ≥5.0x102 | ≥5.0x102 | ≥5.0x102 | ≥5.0x102 | |
6 | Proof Tracking Index(PTI) | - | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | |
7 | Track Resistance and Erosion Resistance | Level | - | - | 1B2.5 | - | - | |
8 | Flammability IEC707(UL-94) | Level | - | V-0 | V-0 | - | V-0 | |
